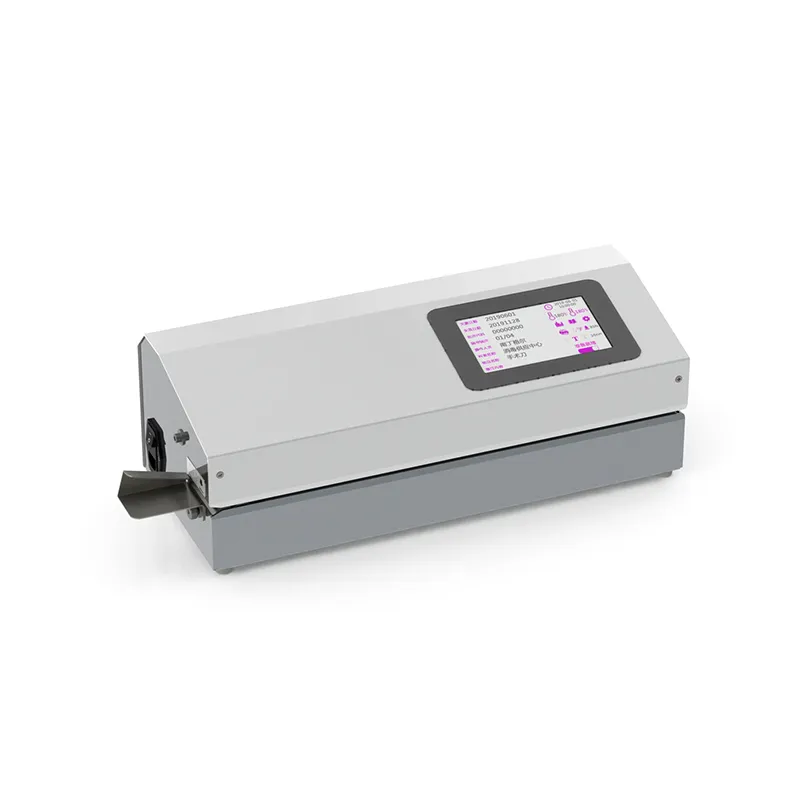

Product details of the medical pouch sealer machine


Product Introduction

The unique design makes Ro-Chain medical pouch sealer machine more competitive in the industry. The product meets the industry specifications of quality and safety. Shanghai Ro-Chain Medical CO.,LTD is committed to serving customers with sales and after-sales service network.

Model : RCSM100-CR Medical Sealing Machine

Product main feature:

1, 7 inch color LCD touch screen, graphical interface, Chinese and symbol display, built-in clock and parameters can be set and has automatic storage function;

2, Through the bring-your-own color touch control screen to the device use parameters and need to print the operator's name, section, item name, device name, pot number, pot, sterilization date, expiration date, batch code to set or change, at the same time by the sealing machine to print the corresponding settings content;

3, With self-operation identification function, can print the relevant date, temperature, pressure, speed and other parameters. Computer intelligent temperature control design, operating temperature of 60~220°C arbitrary settings, temperature control accuracy ±1%, preset

4, Commonly used temperature, 60, 120, 180, 220 degrees, according to the daily needs of users to achieve rapid switching, to meet the needs of fast-paced work.

5, With USB interface, you can import or export data to the computer.

6, Bring their own positive order (reverse order), to achieve the number of seals within 0-9999 statistics, with print margins, printing intervals in line with other special functions.

7, High-speed heating design: 20~180°C only 30 seconds, commonly used operating temperature from 120~180°C only 10 seconds, energy-efficient, to meet the needs of fast-paced work;

8, Auxiliary cooling design: equipped with micro-computer-controlled cooling mechanism, reduce the waiting time from high temperature seal temperature to low temperature sealing temperature, commonly used operating temperature from 180~120°C only 40 seconds, can effectively improve work efficiency;

9, Safety: seal temperature exceeds the operating temperature setting range±4 degrees C, the machine will automatically stop working, effectively ensure the quality of the seal and the safe operation of the equipment;

10, Sealing speed of 10 m/min, the use of light control technology to achieve sealing and printing automatic detection;

11, Seal width of 12 mm, sealing indicators in line with the standard "YY/T 0698.5-2009" requirements;

12, Sealing edge 0 to 35mm adjustable;

13, Floating constant pressure pressing structure design, to adapt to three-dimensional bags and different thickness paper bags sealing needs;

14, With Chinese and English, Numbers and special character printing functions that comply with YY0466-2003 Medical Devices for Medical Device Labeling, Marking, and Information Provision can meet the requirements of the Ministry of Health, such as sterilization date, expiration date, sterilization batch, pot number, pot number, operator name, department name, device name and other printing functions, you can choose to reverse print.

15, The effective date can be set according to the number of effective days automatically adjusted.

16, Bring your own sealing machine in English and Chinese printing system, built-in 1 24-pin printer, printing clear, set printing matters simple and fast;

17, Fault automatic alarm indication, can achieve automatic detection of the working process, a variety of faults can automatically alarm or prompt;

18, With narrow body, normal, wide body three forms of printing font selection, combined with the symbol of the printing form, convenient to print more content to a relatively narrow bag;

19, The system will be based on the selected print content to give the print width value, automatic accounting printing minimum bandwidth, to help operators before printing to determine the number of items to choose a suitable paper plastic bag, to achieve paper plastic bag width is insufficient before sealing reminder;

20, Printing function can achieve a one-click shutdown can also be selected to close an entry according to the need, convenient operators in printing and do not print between the rapid conversion;

21, Automatic energy-saving standby: standby time and standby temperature adjustable, intelligent standby recovery, high-speed recovery to operating temperature;

22, Advanced flat ceramic heating components, heating fast, heating uniform, High temperature resistance, long life, high thermal efficiency;

Technical specification:

Sealing speed: 10±0.5 m/min,    Sealing edge: 0~35 mm adjustable

Seal line width: >12 mm,   Operating temperature: 60~220°C adjustable

Temperature control accuracy: ≤ 1 %,   Printing way: Pin type printing

Operating environment: 20~40 °C,    AC power supply: 220V±10% 50Hz

Operating rate: 500 W,     Maximum current: 3.2 A

Fuse: 5A×2,    Dimensions: 560×235×195 (L× W × H) mm (without auxiliary legs, guide plate)

Temperature: 0~55°C,   Humidity: ≤90% (R.H),    Atmospheric pressure: 50KPa ~106KPa
