Best Cssd Equipment Manufacturers Cssd Equipment Manufacturers Company

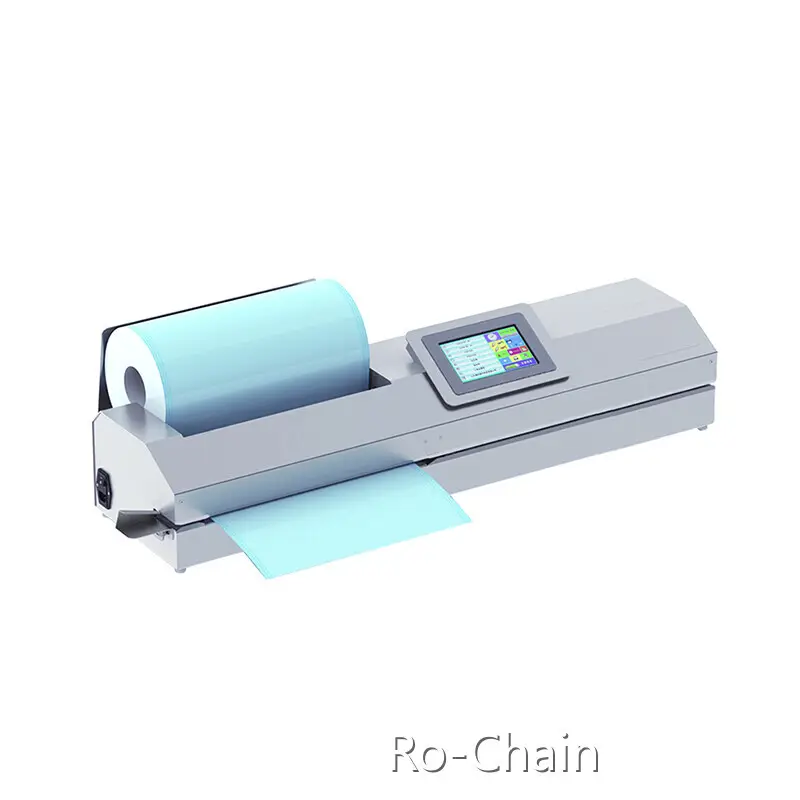

Model :  RCSM121-A  Sealing&Cutting& Printing Function Sealing machine

Product Main features:

1, With automatic feed cutting seal printing function, only according to the actual needs to set the required length and quantity of paper plastic bags, after starting the program, the equipment can complete automatic feed, automatic cutting, automatic hot sealing, and finally complete the setting parameters of the Chinese and English printing;

2, With independent cutting paper plastic bag, separate hot seal or seal printing function or cutting seal printing one, can achieve a machine multi-use, effectively improve work efficiency;

3, According to the actual need to load multiple rolls of different widths of paper plastic bags, to achieve multiple volumes at the same time to complete the cutting seal, so as to improve the efficiency of the machine;

4, 7" color LCD capacitive touch screen, bring your own Andriod operating system, graphical interface, built-in clock/ calendar and working parameters adjustment and settings, and has automatic storage function;

5, Bring your own USB interface, facilitate data import and export to the computer

6, The device can be set or changed by using various parameters and other contents through its own color touch control screen, and the corresponding setting content is printed by the sealer;

7, Computer intelligent temperature control, temperature control accuracy ±1%, operating temperature of 60 ~220°C arbitrary settings;

8, High-speed heating design: room temperature to 180°C heating only 40s, energy-efficient, to meet the needs of fast-paced work;

9, Auxiliary cooling design: equipped with micro-computer-controlled cooling system, reduce the high temperature seal to low temperature seal temperature adjustment waiting time;

10, Safety: seal temperature exceeds the operating temperature setting range of ±4 degrees C, the machine will automatically stop working, effectively ensure the quality of the seal and the safe operation of equipment

11, With seal detection function, can display and print the relevant sealing time, temperature, speed, pressure login parameters.

12, With energy-saving function, you can adjust the standby time, when the device is not used, will automatically cool down to standby temperature, save energy.

Product Technical specification:

Control system: 7" color LCD capacitive touch screen, Android operating system

Sealing speed: 10±0.5 m/min

Sealing edge: 0~35 mm adjustable

Seal line width: 12 mm

Operating temperature: 60~220°C adjustable

Temperature control accuracy: ≤ 1 %

Printing way: Pin type printing

Operating environment: 20~40 °C

AC power supply: 220V±10% 50Hz

Operating rate: 500 W

Maximum current: 3.2 A

Fuse: 5A×2

Dimensions: 1030×290×200 (L× W × H) mm

Temperature: 0~55°C

Humidity: ≤90% (R.H)

Atmospheric pressure: 50KPa ~106KPa

Weight: 42kg
