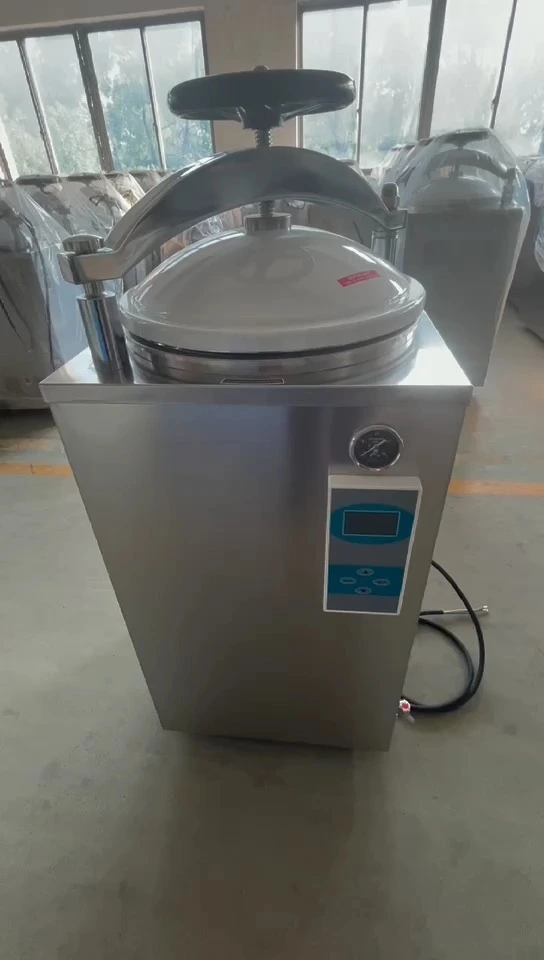

Model RC-LD75 High pressure Vertical Autoclave
High pressure Vertical Autoclave
MODEL:RC-LD75
PRODUCT FEATURES:
1.Fully stainless high-alloy steel structure
2.Digital display of working status, touch of key
3.Auto discharge the cool air, and steam discharging automatically after sterilization
4.Automatically shut off with beep reminding after sterilization
5.With two stainless steel sterilizin baskets
6.Easy to operate, safe and reliable
PRODUCT TECHNICAL PARAMETERS:
Model | RC-LD35 | RC-LD50 | RC-LD75 | RC-LD100 |
Chamber volume |
35L(φ318×450)mm |
50L(φ340×550)mm |
75L(φ400×600)mm |
100L(φ440×650)mm |
working pressure |
0.22MPa |
0.22MPa |
0.22MPa |
0.22MPa |
Working temperature |
134℃ |
134℃ |
134℃ |
134℃ |
Max working pressure |
0.23 Mpa |
0.23 Mpa |
0.23 Mpa |
0.23 Mpa |
Heat average |
≤±1℃ |
≤±1℃ |
≤±1℃ |
≤±1℃ |
Timer |
0~99min or 0~99hour59min |
0~99min or 0~99hour59min |
0~99min or 0~99hour59min |
0~99min or 0~99hour59min |
Adjustment of temperature |
105~134℃ |
105~134℃ |
105~134℃ |
105~134℃ |
Power |
2.5Kw/AC220V.50Hz |
3Kw /AC220V.50Hz |
4.5KW AC220V.50Hz |
4.5KW AC220V.50Hz |
Overall dimension |
470×450×840(mm) |
520×500×970(mm) |
550×530×990(mm) |
580×560×1060(mm) |
Transport dimension |
540×540×970(mm) |
580×580×1090(mm) |
610×610×1110(mm) |
640×640×1170(mm) |
G.W/N.W |
61Kg/ 46Kg |
73Kg/56Kg |
87Kg/67Kg |
95Kg/73Kg |
